The electrical waste gate actuator enables the electrical interaction between the engine and the turbocharger. The electrical waste gate actuator allows very high actuation speeds and accurate boost pressure management.
Related Contents:
AGCO 2×4 CANUSB Interface Diagnostics
2026 AGCO EDT Electronic Diagnostic Tool
AGCO WinEEM5 Power Service Tool 9.0
ECU connection
The electrical waste gate uses the CAN bus to communicate with the engine ECU. The power feed is on the vehicle manufacturer’s responsibility.
The pin numbers at the ECU:
MD1CE100 1.20 CAN LOW
MD1CE100 1.19 CAN high

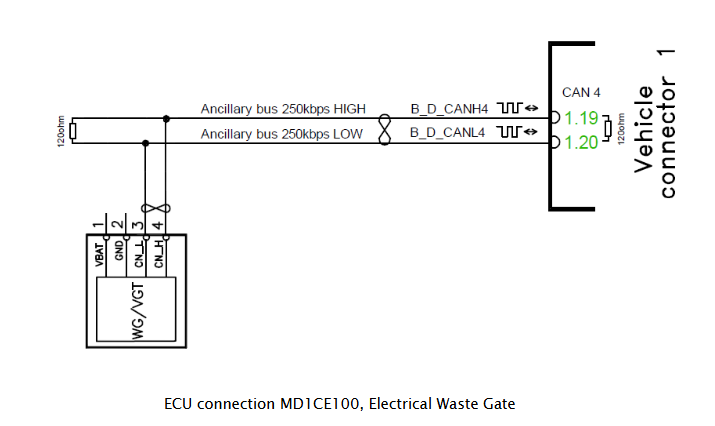

The waste gate connection is shown in figure ECU connection MD1CE100, Electrical Waste Gate.

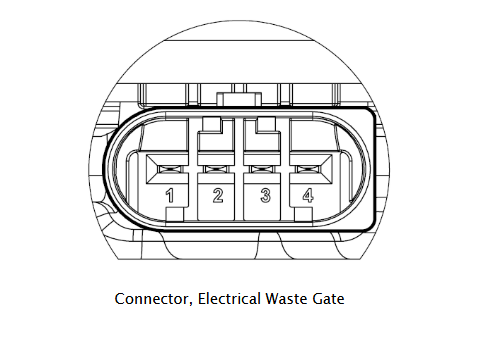

The waste gate connector is shown in figure Connector, Electrical Waste Gate.
