Here is the instruction guide on how to measure and adjust primary pilot pressure for HITACHI ZX890-7 excavator.



Related Contents:

2024 HITACHI AllinOne Tool 3.13

Hitachi Dr.ZX Excavator Diagnostic Tool Cable

Hitachi Excavator ZX-7 Service Repair Workshop Manual 2021 PDF



Preparation

1 Stop the engine.

2 Push the air bleed valve on top of the hydraulic oil tank and bleed air.

3 Remove plug (1) from the pilot filter. Install the adapter (ST 6069) and the pressure gauge (ST 6942) to the pressure check port.

: 19 mm

4 Start the engine. Confirm that no oil leakage is observed at the pressure gauge connecting part.

5 Maintain the hydraulic oil temperature at 50±5 °C.



Measurement

1 Follow the test conditions specified below.

2 Measure the pilot pressure without load by using the pressure gauge under each test condition in the table.

3 Repeat the measurement three times and calculate the mean values.



Evaluation

Primary Pilot Pressure Adjustment Procedure



Adjustment

1 Remove plug (2) from relief valve (1).

42mm

2 Install the estimated quantity of shims (3).

3 After the adjustment, tighten plug (2).

: 25+2 N·m

4 After the adjustment, check the set pressure.



NOTE

Standard Change in Pressure (Reference)

This is the instruction show you guide on how to do coolant control valve operation check for HITACHI ZX-6 coolant control valve operation check.



Preparations:

2024 HITACHI AllinOne Tool 3.13

Hitachi Dr.ZX Excavator Diagnostic Tool Cable



Procedures:

1 Click Operation Check of [Coolant Control Valve].

2 Click [Start].
The forced operation is continued while “Executing” is displayed.
Click [Stop] if you want to stop the forced operation.
• One Time … If 60 seconds pass, it will stop automatically.
• Continuous … ON / OFF of valve ie reperted every 5 seconds.



3 Turn the key switch OFF.





Please carry out only in the state of key switch ON.

Coolant Control Valve checking of operations cannot be carried out during engine operation.

[Procedures]

1) Please change into a key switch ON state (Engine stopped)

2) Depress start button.

one timefor 60 seconds turns on a valve (Opened).it turns off automatically in 60 seconds(Closed).

Continuation:

ON(Opended)/OFFidosed) of a vaive is repeated every 5 seconds.Please depress a stop button to stop.

3) Piwase check whether the operation sound of Coolant Contrcl Vaive can be heard.

4) After work tum key OFF.

Here is the instruction show you guide on how to connect Hitachi MPDr diagnostic cable to Hitachi excavator machine.



Tool you need?

2024 HITACHI AllinOne Tool 3.13 with MPDR 3.32+Security 3.17

Hitachi Dr.ZX Excavator Diagnostic Tool Cable





Cable Connection

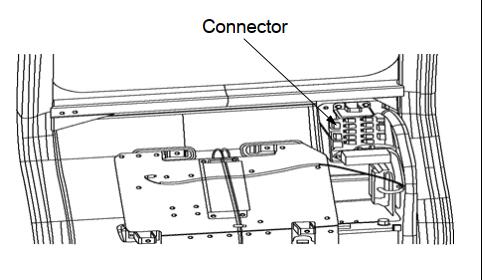

1 Connect a personal computer installing MPDr. to the connector in the cab (refer to the below illustration) with a USB serial cable, an interlink cross cable, and a connecting harness.

2 Turn the key switch ON or start the engine.

Connecting Harness
Part No.: 3108613 (ZX-5/ZW-5/ZX-3/ZW)
Interlink Cross Cable
Part No.: 4668565
Please locally procure an USB serial cable.

ZX-3 Series (Except US, USR)
Wheel Excavator

ZX-3 US and USR Series

ZX-5 Series
Crawler Excavator

ZX-6 Series
