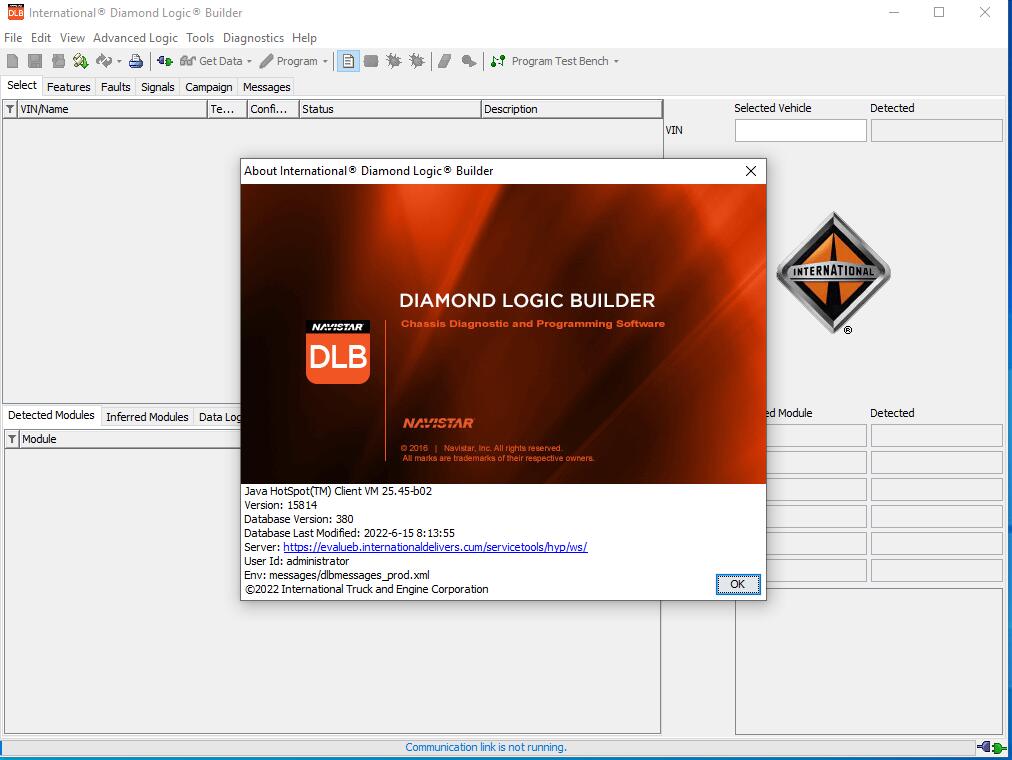

[04.2024] Navistar Diamond Logic Builder DLB Download & Installation

$69.00$99.00

SKU: N/A Category: Tag:

Description

Navistar Diamond Logic Builder (DLB) provides high-performance diagnostics for the electrical systems on International trucks and IC Buses.DLB intuitively displayed in the form of graphics and text. This software reads and displays vehicle trouble codes as well as vehicle features and parameters.

Note:After payment,the download link will show on page,if you can not get it,pls contact on Whatsapp or autoepccatalog@outlook.com



International Diamond Logic Builder DLB Features:

Level:Level 3

Date: 04.2024/06.2022

Size:About 420MB rar

Region: Worldwide

Language:English Only

Database Version:425/367

OS Requires:Win7,Win8 and Win10

Price only for ONE PC Installation and Activation



Diamond Logic Builder DLB 2024.04 Video Demo:



International Diamond Logic Builder DLB Level Information:

Level 1 (Diagnostics)-L1 is included with active product key.

Level 2 (Diagnostics and Parameter Programming)-L2 access requires completion of web based training for each user.

Level 3 (Diagnostics, Parameter Programming and Advanced Logic)-L3 access NOT requires completion of Instructor Led training for each user.



International Diamond Logic Builder DLB Functions:

Automatic vehicle identification

Read, clear DTC codes

Data List Graphical

Actuation test

View ECU Information

Advanced Features:

Change the switch position

Change and edit option on the body system (off /on cruise control, change the action modes of the lights, Adjust door lock according to vehicle speed …)

Control of the control system
Watch
Record
Save
Play instant recordings
Problem diagnosis codes
Retrieve, View, Delete
HD-OBD Freeze Frame Data
HD-OBD monitors
Monitor the results
Preparation for diagnosis
Monitor the performance ratio
View, save print
Service Bay Tests
key on, engine off
Actuator tests
Intermittent fault sensor
Cold start test
Engine running
Air management test
Cylinder cutting test
Engine fan test (if equipped)
High pressure pump test
Post-treatment system tests
Procedures
Calibration of the sensor
Replacements of parts
Programmable parameters
Motor characteristics settings
See Programming
Change Programming
Restoration of the service interval



International Diamond Logic Builder DLB Supports Models:

MaxxForce 5 (2007 – 2009)

MaxxForce 7 (2007 – 2009)

MaxxForce 7 (2010 – 2012)

MaxxForce 7 (2013 – )

MaxxForce DT, 9 & 10 (2007 – 2009)

MaxxForce DT, 9 & 10 (2010 – 2012)

MaxxForce DT, 9 & 10 (2013)

MaxxForce 11/13 (2008 – 2009)

MaxxForce 11/13 (2010 – 2012)

MaxxForce 11/13 (2013 – 2013.5)

MaxxForce 15 (2010 – 2013)

N9/N10 SCR (2014 – )

N13 SCR (2013 – 2014)

N13 SCR (2015 – )



International Diamond Logic Builder DLB Compatible Interface:

Nexiq USB link (version 1 or 2)

DPA5

Noregon DLA

And some other RP1210 devices



International Diamond Logic Builder DLB Master List:

ABS_Active_Event

ABS_Drive_Axle_Event_Raw_Signal

ABS_Drive_Axle_Event_Signal

ABS_Failure_Event

ABS_Hyd_Warning_Lamp_Raw_Signal

ABS_Hyd_Warning_Lamp_Signal

ABS_Warning_Lamp

Acc_Fault

Accessory_Global_Signal

Actual_Retarder_Percent_Torque

J1939BB_Rcv_61217_058_033_Timer

ADR35_Signal

Air_Horn_J1939_Status

Air_Horn_SW_Signal

Axle_Load_Front_Old_Signal

Engine_Speed_Function_1

Air_Solenoid_Power

Air_Solenoid_Power_FET_Status

Air_Solenoid_Power_Off_Req

Air_Solenoid_Power_Req

Air_Susp_Press_Cmd

Air_Susp_Sensor_Signal

Alert_Timer

ASM_Swch1_Switch

ASM_Swch1_Switch_Ind_Cmd

ASM_Swch2_Switch

ASM_Swch2_Switch_Ind_Cmd

ASM_Swch3_Switch

……

Additional information

Verison

2024.04, 2022.06
