Description

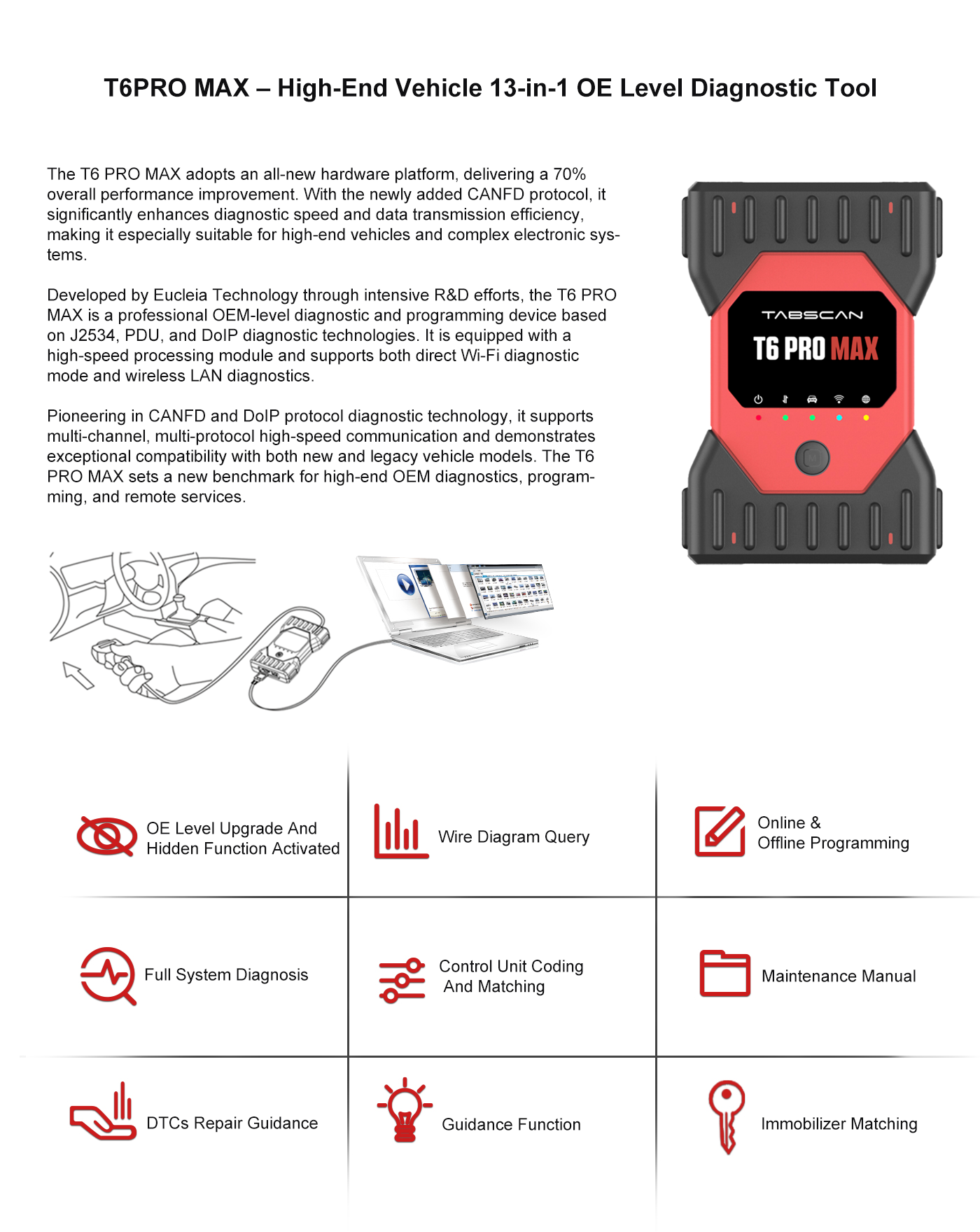

EUCLEIA T6 PRO MAX adopts an all-new hardware platform, delivering a 70% overall performance improvement. With the newly added CANFD protocol, it significantly enhances diagnostic speed and data transmission efficiency, making it especially suitable for high-end vehicles and complex electronic systems.

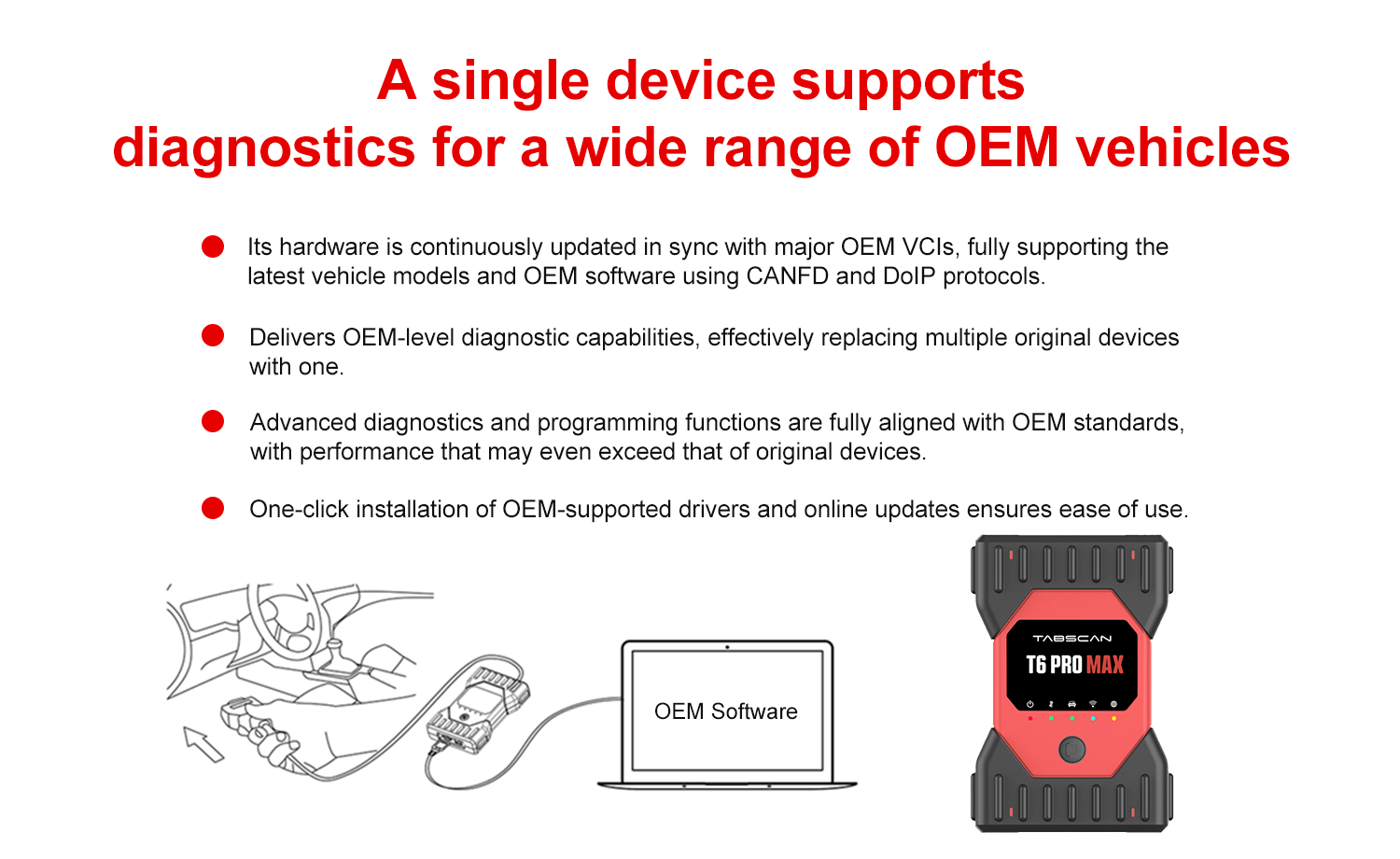

Developed by Eucleia Technology through intensive R&D efforts,EUCLEIA T6 PRO MAX is a professional OEM-level diagnostic and programming device based on J2534, PDU, and DoIP diagnostic technologies. It is equipped with a high-speed processing module and supports both direct Wi-Fi diagnostic mode and wireless LAN diagnostics.
Pioneering in CANFD and DoIP protocol diagnostic technology, it supports multi-channel, multi-protocol high-speed communication and demonstrates exceptional compatibility with both new and legacy vehicle models.EUCLEIA T6 PRO MAX sets a new benchmark for high-end OEM diagnostics, programming, and remote services.
Note:There are 3 options
1 Only T6 Pro Max—>GET only T6 Pro Max Diagnostic kit
2 with 2TB SSD——->GET T6 Pro Max Diagnostic kit and 2TB SSD with software pre-install
3 with CF-54 Laptop—–>GET T6 Pro Max Diagnostic kit and Pasonic CF-54 with software pre-installed

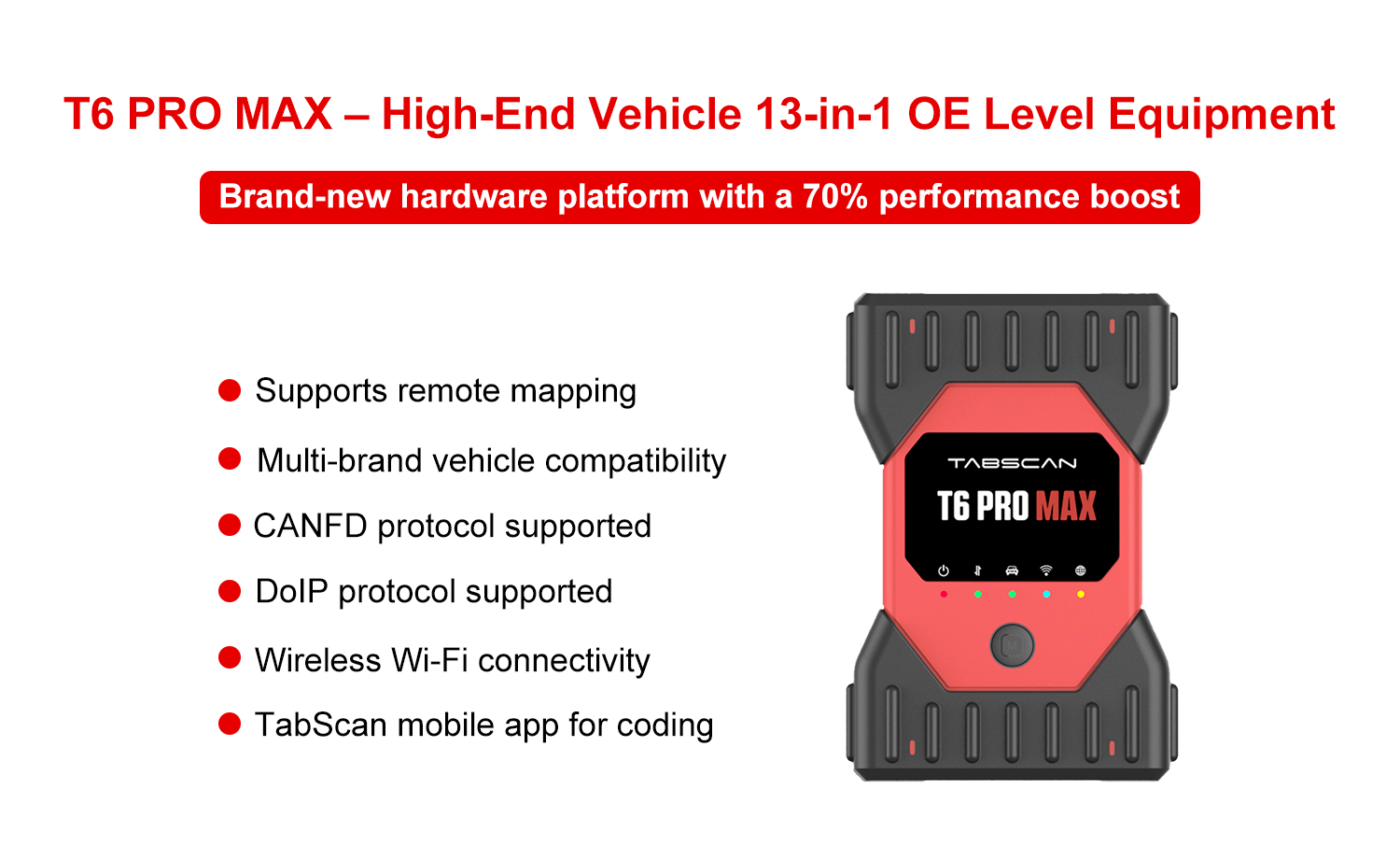

EUCLEIA T6 Pro Max Features:
Free shipping
Support multi-brands car
WIFI Wireless Connection
TabScan Mobile App Coding
Support CANFD and DoIP Protocol
No include diagnostic software,you need buy extra.
EUCLEIA T6 Pro Max Functions:
OE Level Upgrade And Hidden Function Activated
Wire Diagram Query
Online & Offline Programming
Full System Diagnosis
Control Unit Coding And Matching
Maintenance Manual
DTCs Repair Guidance
Guidance Function
Immobilizer Matching

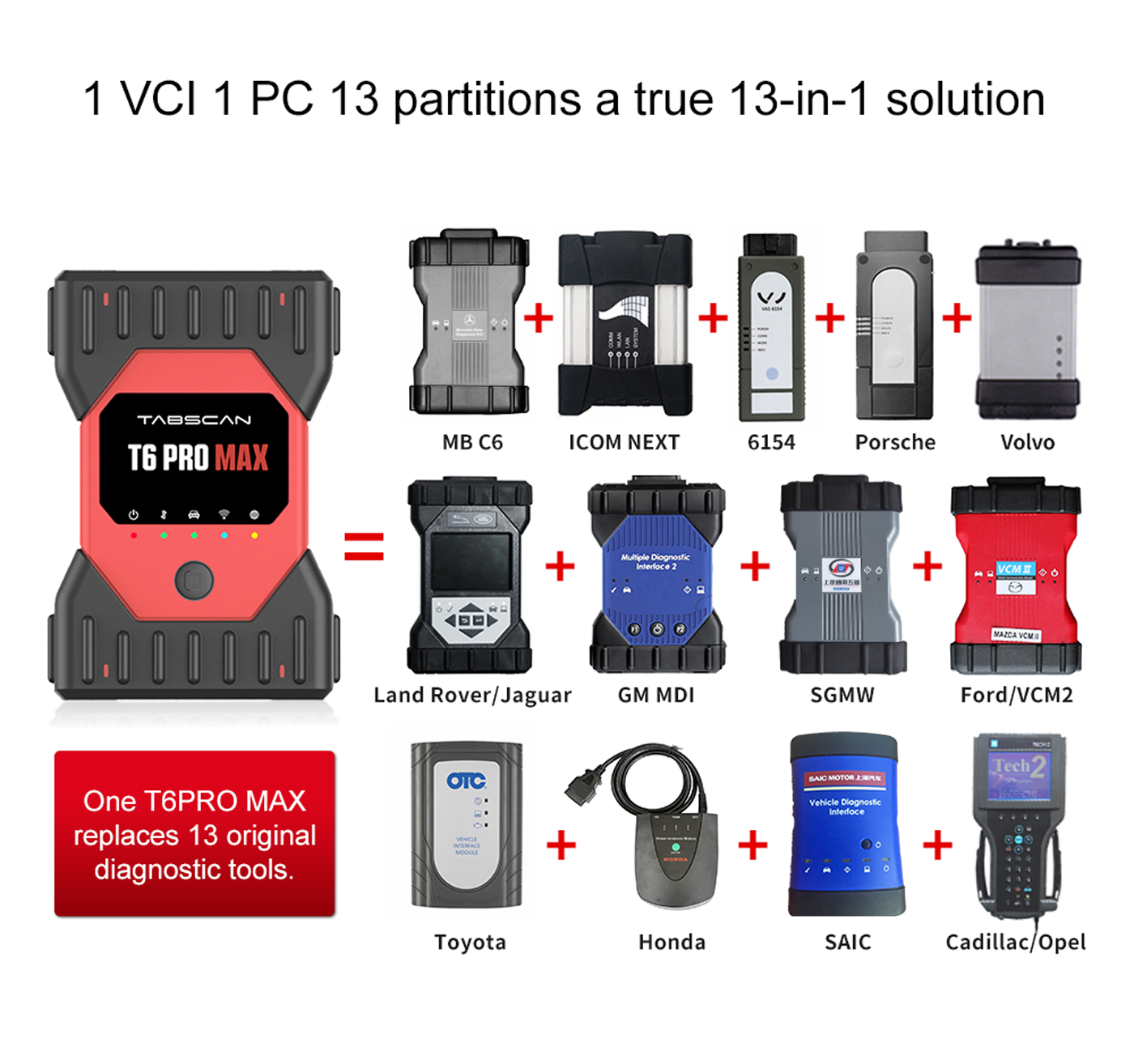

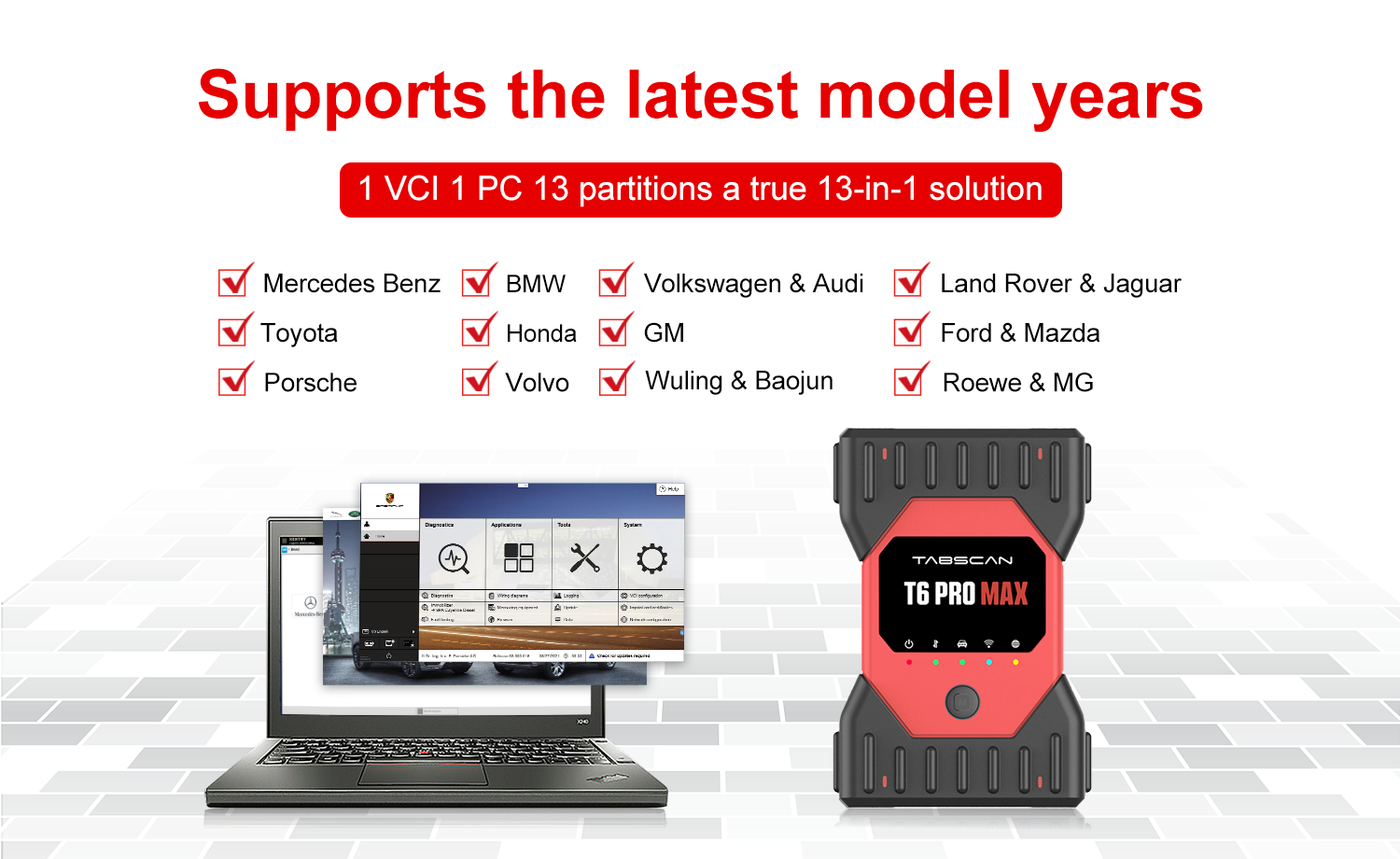

EUCLEIA T6 Pro Max Car Brands:
Mercedes-Benz
BMW
Volkswagen & Audi
Land Rover & Jaguar
Toyota
Honda
GM
Ford & Mazda
Porsche
Volvo
Wuling & Baojun
Roewe & MG
How to Use EUCLEIA T6 Pro Max?
Step 1
Download and install the latest TabScan PC management tool from the official website http://www.eucleia.net. After successful installation, check the Device Manager to confirm that the VCI device is recognized.
Step 2
Connect the female-to-DB26 adapter of the main test cable to the diagnostic programming box and tighten the screws. Insert the 16-pin male-to-OBDI1 connector of the test cable into the vehicle’s OBDI female diagnostic port, which is typically located below the dashboard.
Step 3
Connect the Type-A end of the USB cable to the PC and the Type-B end to the diagnostic programming box.
Step 4
Launch compatible third-party or OEM diagnostic software, then configure the software to recognize the VCI device as the diagnostic interface. When the software successfully connects, the Vehicle indicator will flash green.
EUCLEIA T6 Pro Max Compatible Software Details:
Mazda Online Diagnosis:Users must have their own Mazda online diagnosis account. (You can purchase login services from professional sellers; we do not provide them.)
Nissan Online Diagnosis:Users must have their own Nissan online diagnosis account. (You can purchase login services from professional sellers; we do not provide them.)
Ford FDRS Online Diagnosis:Users must have their own Ford online diagnosis account. (For offline diagnosis, please use IDS.) (You can purchase login services from professional sellers; we do not provide them.)
Porsche Online Diagnosis:Users must have their own Porsche PPN online diagnosis account. (Offline diagnosis is also available.) (You can purchase login services from professional sellers; we do not provide them.)
ODIS Online Diagnosis:Users must have their own GRP online diagnosis account. (Offline diagnosis is also available.) (You can purchase login services from professional sellers; we do not provide them.)
VW&Audi diagnosis software
VW & Audi software: ODIS, ODIS-E,
Features: diagnosis, online programming,offline programming,hidden function activated,wire diagram query etc.
BMW diagnosis software
BMW software: ISTA-D, ISTA-P,Esys-,Winkwp
Features: diagnosis, online programming.offline programming, hidden function activated, wire diagram query.
Merceds Benz diagnosis software
Merceds Benz software:XENTRY,VEDIAMO,DTS egnineer
Features:diagnosis,online programming,offline programming,hidden function activated,wire diagram query etc
Jaguar Land rover diagnosis software
Jaguar Landrover software:SDD,PATH-FINDER
Features:diagnosis,online programming,offline programming,hidden function activated,wire diagram query etc.
Porsche diagnosis software
Porsche software:PIwIS3
Features:diagnosis,online programming,Clear DTCs,oil reset,wire diagram query etc.
Ford diagnosis software
Ford/Cadillac software:IDS,FORSCAN,FRDS
Features: read DTCs,clear DTCS online programming
GM series diagnosis software
Buick, Chevrolet, Cadillac software:GDS2,RDS,DPS,VDS
Features: read DTCs, clear DTCs, online programming etc.
Volvo diagnosis software
Volvo software: VIDA
Features: read DTCs, clear DTCs,data analysis(compatible with 2014 year model)
Toyota diagnosis software
Toyota software: GTS
Features: read DTCs, clear DTCs data analysis, immobilizer matching etc.
Honda diagnosis software
Honda software:l-HDS
Features: read DTCs,clear DTCs, data analysis, immobilizer matching etc.
Mazda diagnosis software
Mazda software: IDS,FORSCAN
Features: read DTCs, clear DTCs active test, data analysis, immobilizer matching, system settings.
Roewe MG diagnosis sotware
Roewe MG software:VDS2
Features: online programming,read DTCs, clear DTCs,active test,data analysis, immobilizer matching,system setting.
SGMW diagnosis software
SGMW/Baojun software:VDS
Features:online programming,read DTCs, clear DTCs,active test,data analysis, immobilizer matching,system setting.
EUCLEIA T6 Pro Max Package List:

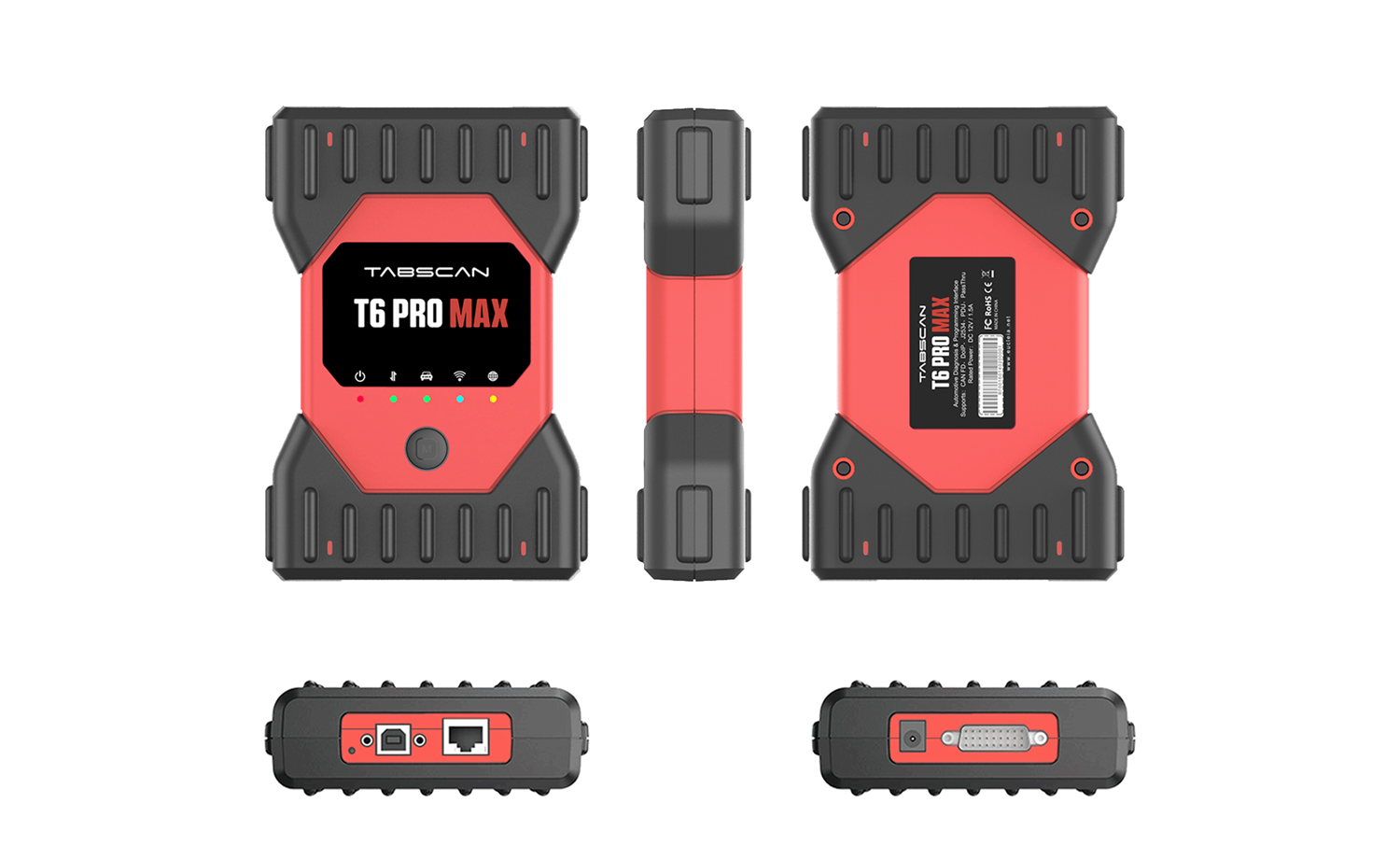

T6 Pro Max main unit
OBD Cable
USB Connection cable
DC Adapter cable
Quick start guide
Certificate of Conformity
Warranty Card
