Curtis 1309 USB Programmer with 1314-4402 OEM Level Programming Station

Description

Curtis 1309 USB Interface Box Handheld Programmer Handset With for Curtis 1314 4401/4402 OEM Level PC Programming Station Software





Curtis 1309 USB Programmer Features:

Version:4.33

Level:OEM and Factory

Model number:1314-4402

Manufacturer:OEM (It is not genuine)



Curtis 1309 USB Programmer Functions:

View and adjust controller programmable parameters.

Real-time monitoring of system variables such as voltage,temperature,and current.

Saves all data -parameter values, monitor values,history logsetc,in a single file.

Edit,rename,export or print files online or oflfine.

Clone data between controllers

View active fault codes and system timers.

View and clear controller fault history log

Online help and automatic update function



SYSTEM REQUIREMENTS

The minimum requirements for the PC Hardware are:

Processor Pentium Ill 833MHz

WindowsXP/ista/7

512MB memory(1024 recommended)

USB port



With RJ11 & MOLEX 4-Pin connectors, works with CURTIS 1314 PC station programmer

This communicating cable is made by a Chinese manufacturer, not the original product of CURTIS Instruments company.

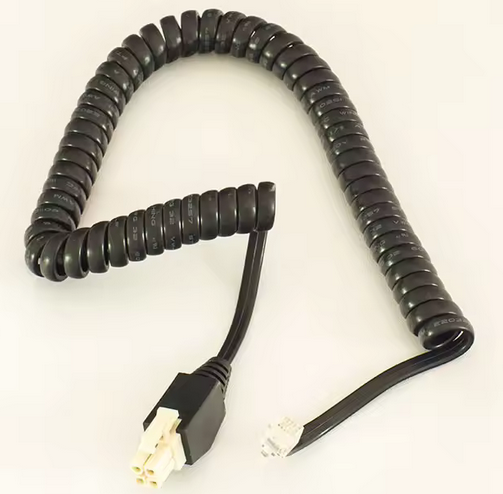

With RJ11 and MOLEX 4-Pin connectors, this communicating cable connect the CURTIS programmable devices (controllers) to 1309 USB box (RJ11 connector for 1309 USB box; MOLEX 4-Pin connector for CURTIS programmable controllers).

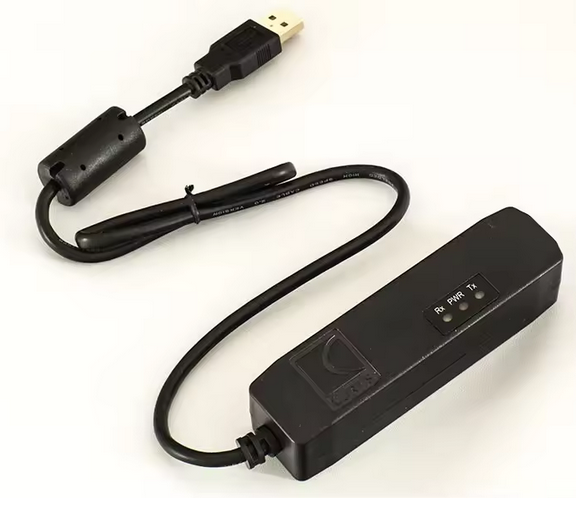

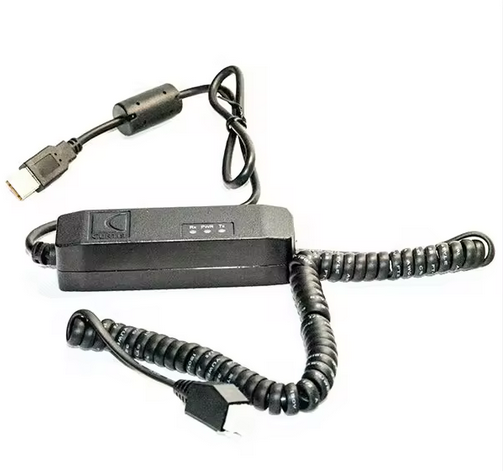

The CURTIS 1309 USB interface box is the key part of CURTIS 1314 PC station programmer. Through an OEM level 1309 USB box, the 1314-4402 programming software obtains full access to all programmable CURTIS controllers.

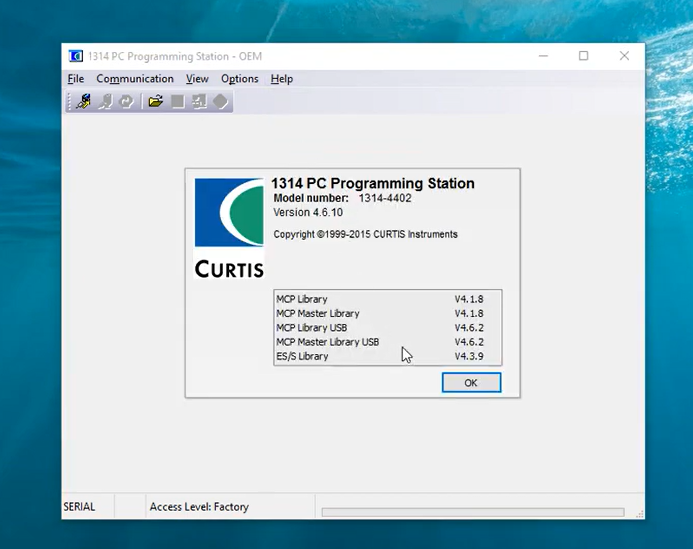

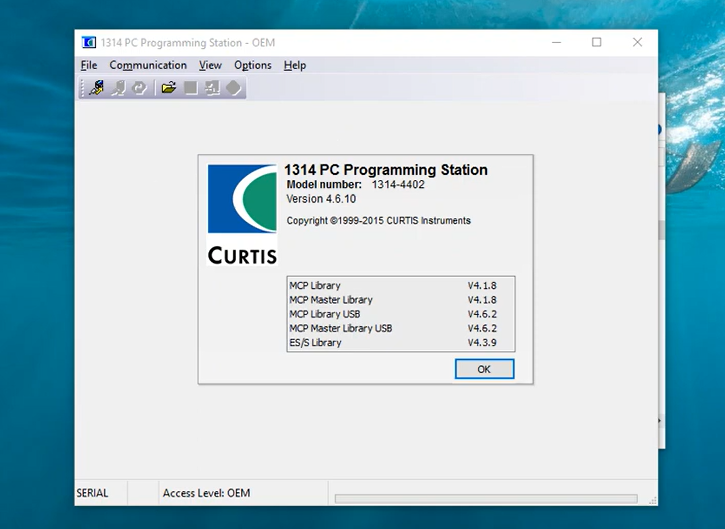

Model 1314 PC Programming Station

Introduction
The Model 1314 PC Programming Station provides a user friendly and powerful Windows interface for adjusting parameters and troubleshooting Curtis products. It also provides the user with unique features for file storage, retrieval and database management to simplify tracking of the programmed device or duplication of its settings to other devices. These features are valuable at the OEM manufacturing site, spare parts depot or dealership.



Model 1314-Version 4

Windows PC Software Tool for Curtis Programmable Devices

The 1314 Windows PC Software Tool provides comprehensive and intuitive PC based programming,monitoring and system diagnostics for all Curtis programmable motor speed controllers and control systems.



The 1314 Windows PC Software Tool is intended for use by vehicle OEMs, dealers,and service engineers,It provides a powerful Windows interface for adjusting settings, troubleshooting, and recording the parameters of any Curtis speed controller or auxiliary device.





Curtis 1309 USB Programmer Support:

1212,1220,1222,1212S,1212P ,1212C,1212E,1229,1236,1238,1253,1266,1268,1220E,1232E,1234E,1239E,1232SE,1234SE,1236SE,1238SE,1204M,1205M,1209M,1221M,1740



Curtis 1309 USB Programmer Unknown:

1226



Curtis 1309 USB Programmer Can Not Support

AC F2-A,AC F2-C,AC F2-T/AC F2-D,AC F4-A,AC F6-A,1226BL
