[Free Shipping] CNH DPA5 Adapter CASE New Holland Diagnostic Tool

(4 customer reviews)


Free shipping by standard shipping need about 12 working days

If you need DHL/UPS/Fedex you need pay extra


CNH DPA5 diagnostic kit work for CASE New Holland excavator,heavy duty machine truck diagnostic,programming,function test…CNH DPA5 allows programs written for the PC to retrieve pertinent information such as fault codes, component information, as well as perform component level diagnostics, tests, and component reprogramming. The DPA 5 communicates with the PC using either a USB cable or via Bluetooth (Class I or Class II), and comes standard with Technology and Maintenance Council (TMC) Recommended Practice (RP) RP1210C-compliant drivers, as well as Society of Automotive Engineers (SAE) J2534-compliant drivers.


CNH DPA5 Adapter Features:

One year warranty


Support Win7,Win8 and Win10

Support CNH EST 9.6/9.7/9.8/9.9 software

With Full chips high quality (some other sellers give low price with low quality missing chips)


CNH DPA5 Adapter Functions:

  • Check the status of parameters;
  • Retrieve faults;
  • Run diagnostic tests;
  • Make ECU and parameter programming;
  • Monitor active and logged diagnostics;
  • View and change ECU configuration;
  • View diagnostic procedures and schematics.
  • Troubleshoot problems;
  • Run scope diagnostics;


E.A.S.y – additional engine diagnostic and download tool for connection directly to ECU to perform diagnostic, programming and ECU reload by K-Line protocol.

CNH Engine Download Tool operates from within the EST program to perform the following engine download operations:

  • Provide Engine Control Unit (ECU) programing update capability;
  • Provide blank ECU initialization and programming capability;
  • Provide ECU programming reassignment for blank and other ECUs;
  • Provide ECU download crash recovery.


CNH DPA5 Adapter Support Models:

New Holland (Agriculture and Construction)

New Holland FK (Fiat-Kobelco)

New Holland O&K (Orenstein & Koppel)

CASE (Agriculture and Construction)



Iveco (Astra) (articulated dump trucks only)


Sumitomo (S.H.I.)



CNH DPA 5 Physical and Electrical

Dimensions 6.1 x 2.5 x 1.2 inches

Voltage Requirements 9 – 32 Volts DC

Current Requirements 250mA maximum through voltage range

Operating Temperature Range -40 to +85C

Wired PC Communications Type USB Version 1.1 or Higher

Wired Connection USB Cable (up to 15 feet)

Wireless Connection Bluetooth (DPA 5 Dual-CAN is equipped with Class 1 radio)

Vehicle-Side Connector DB25 Female

PC-Side Connector Standard B-Type USB Jack

PC Device Drivers TMC RP1210C (RP1210B, RP1210A) Compliant Drivers

DG Native Drivers


CNH DPA5 Adapter Firmware Update:

Our CNH DPA work well without newest CNH EST 9.8 software,it is not need to update firmware,everything work well.


CNH DPA5 Adapter Driver Download:

No need install driver extra for it,after CNH EST 9.8 installed i works.


CNH DPA5 Adapter Reviews:

Review 1:

I have CNH EST 9.8 new version, work with this CNH DPA5, can do full diagnostic for New Holland, Kobelco, CASE, Steyr, Flexicoil, FK, O&K. New Holland Construction and New Holland Agriculture equipments. Case Construction and Case Agriculture machine.

Review 2:

This DAP5 white interface work better than other’s,I bought DPA5 from other who offer black one which can not work well only support some models.

Review 3:

autoepccatalog.com provide this DPA5 adapter work good,and they are reliable supplier, service is good, when you need help, just offer error picture on Whatsapp,they will have their technician & other buyer share experience for your problem. awesome service center!

Review 4:

Very nice DPA5 diagnostic kit,i find it is equipped with full chips same as original,and some other cheap CNH DPA5 with bad PCB and chips

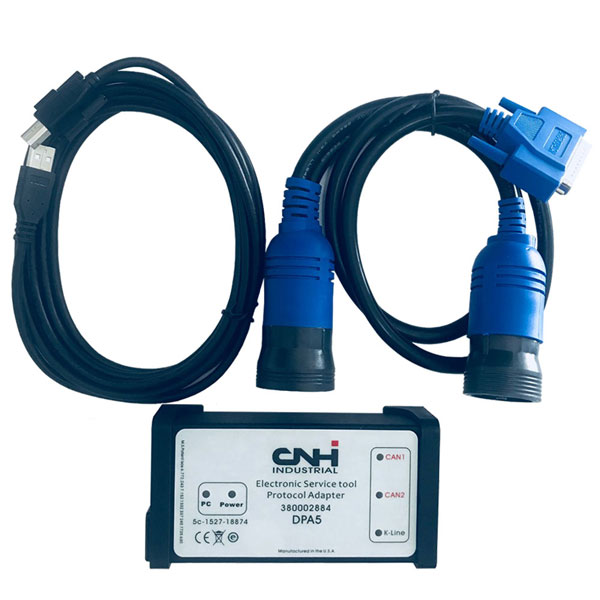

CNH DPA5 Adapter Package List:

1x CNH Dearborn Protocol Adapter 5 full New interface

1x 15′ USB cable

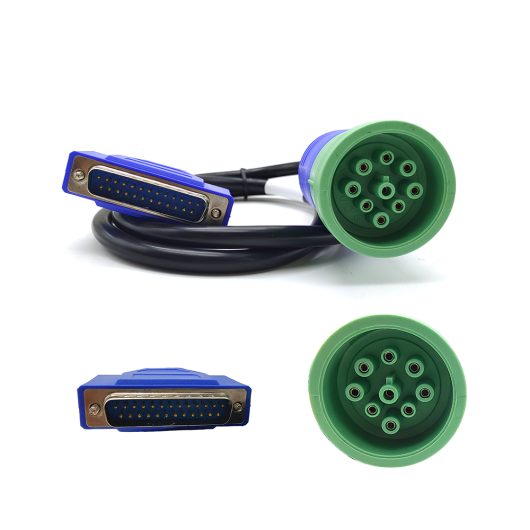

1x 9 pin Deutsch cable

1 x high quality tool box (optional)

Additional information

Packaging method

Without Tool Box, With Tool Box
